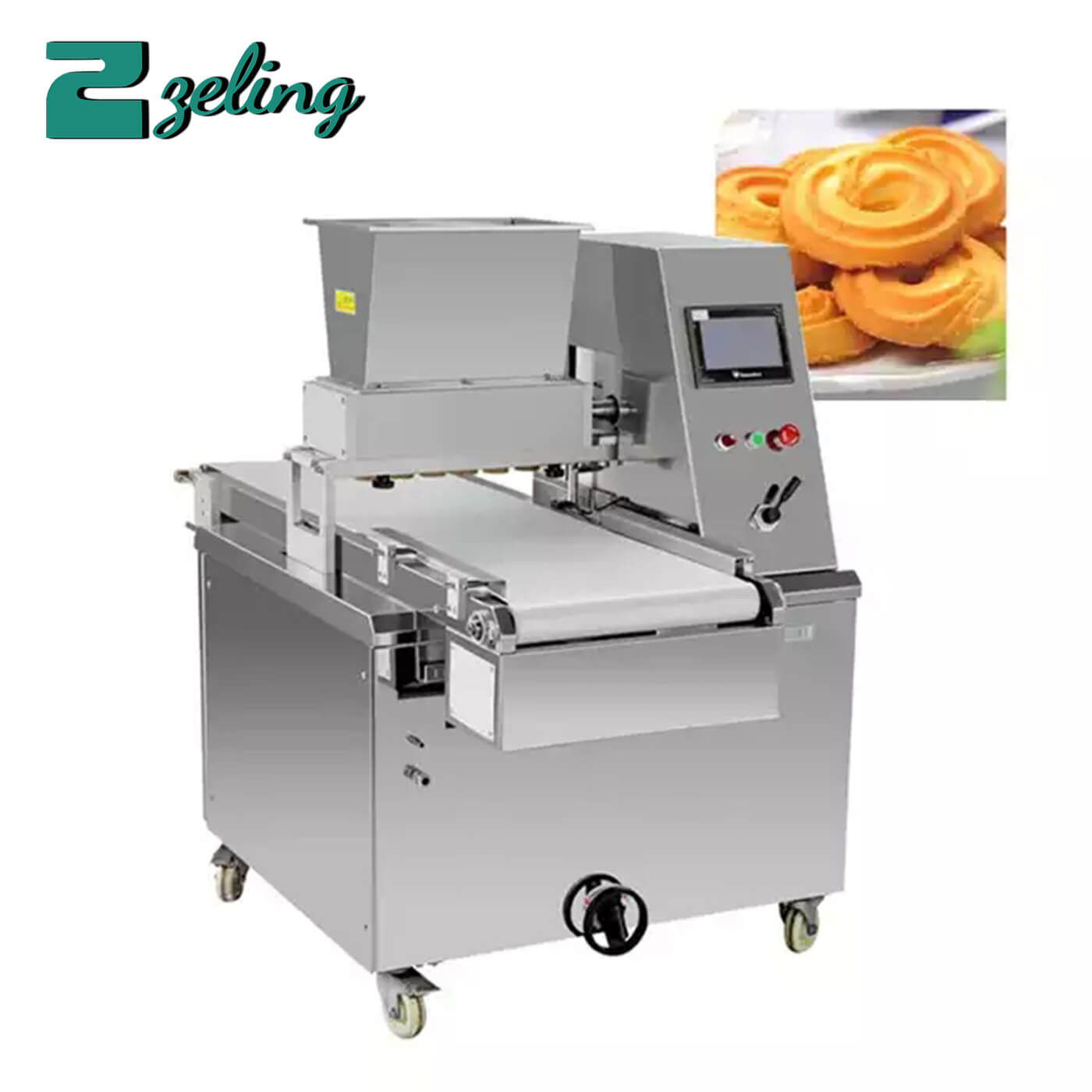

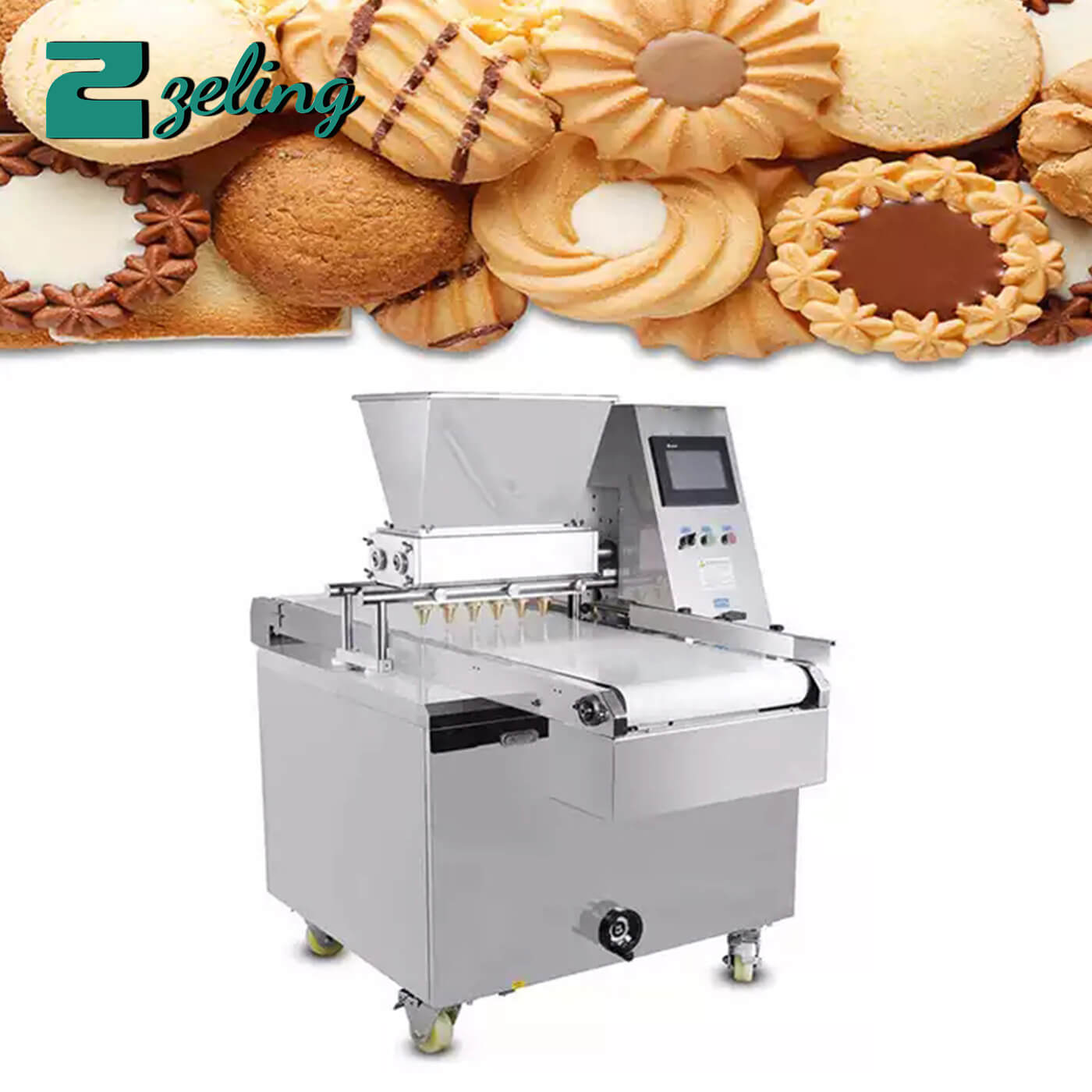

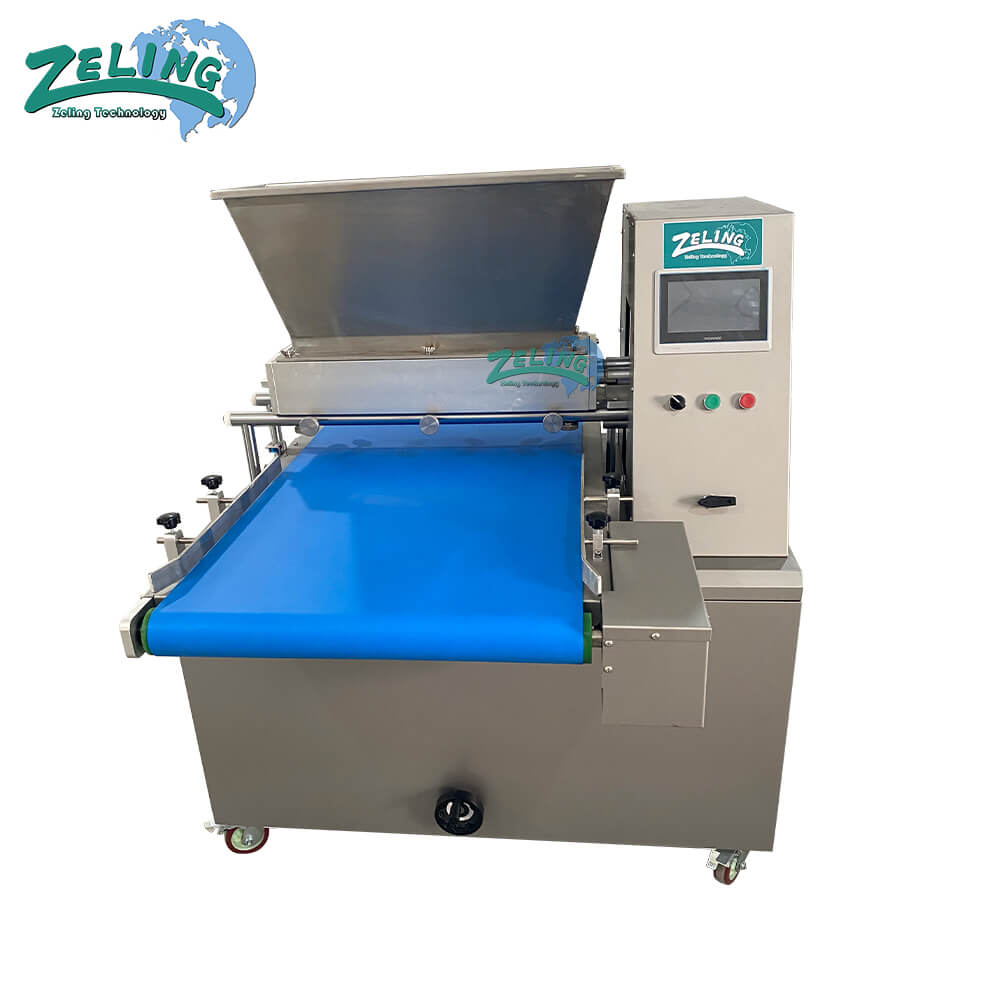

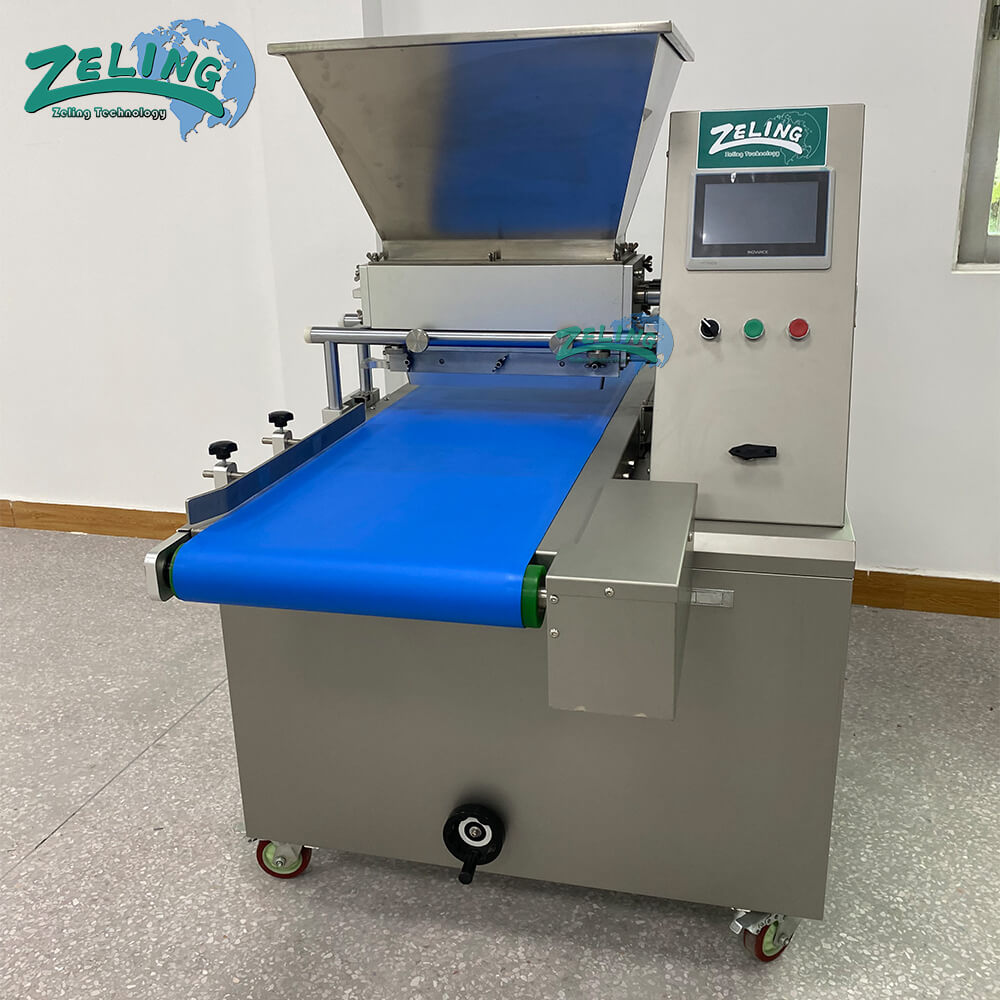

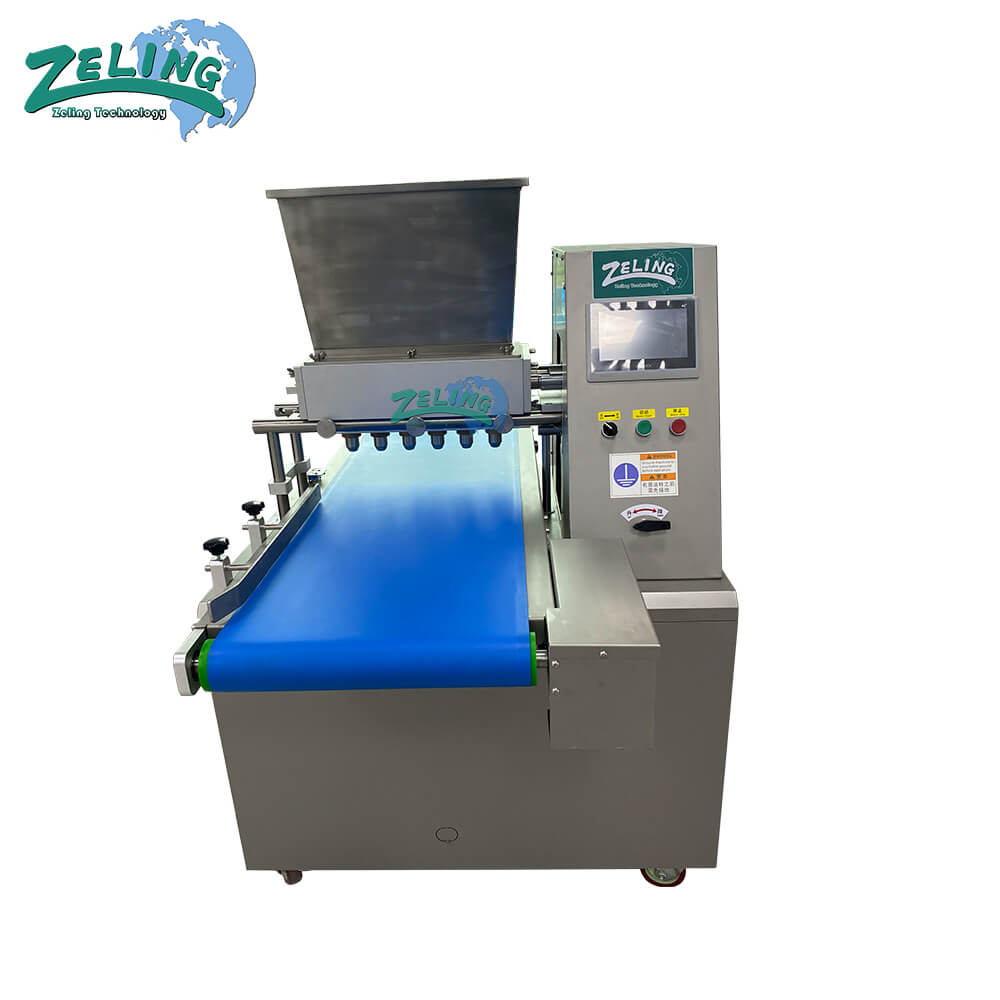

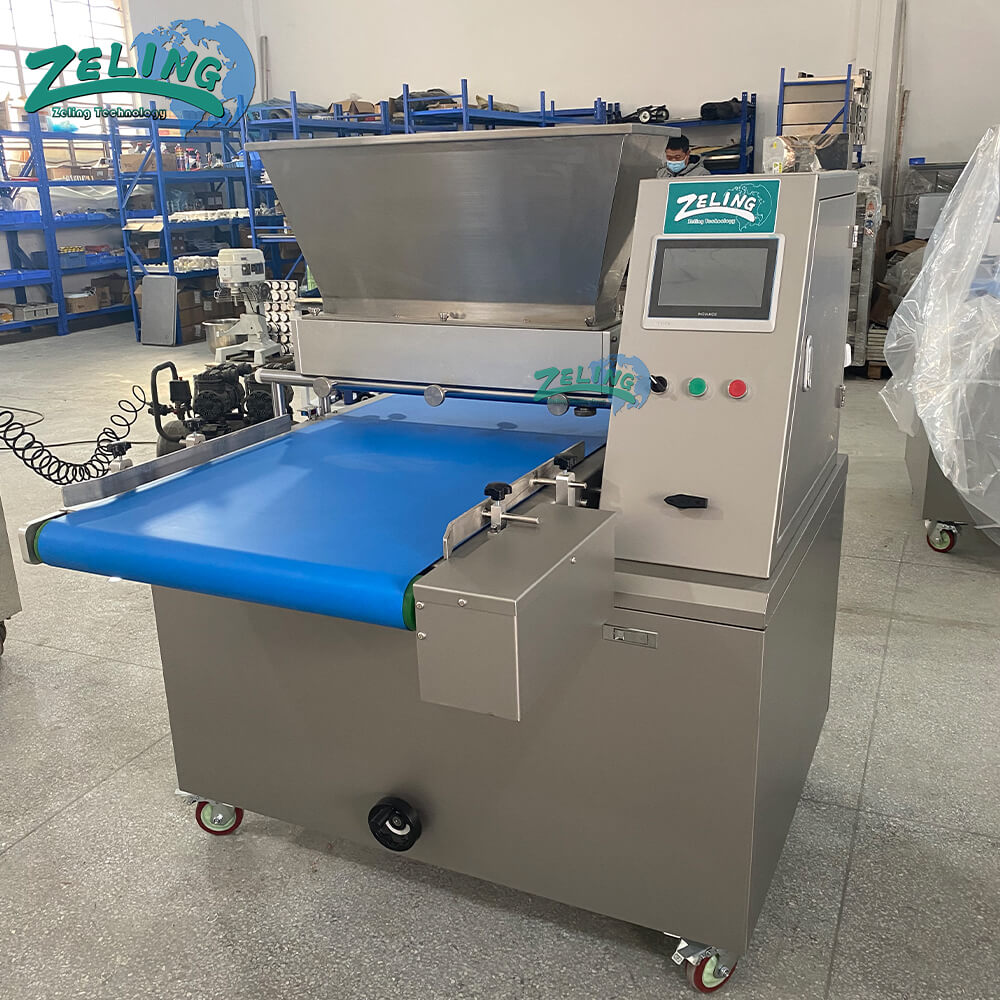

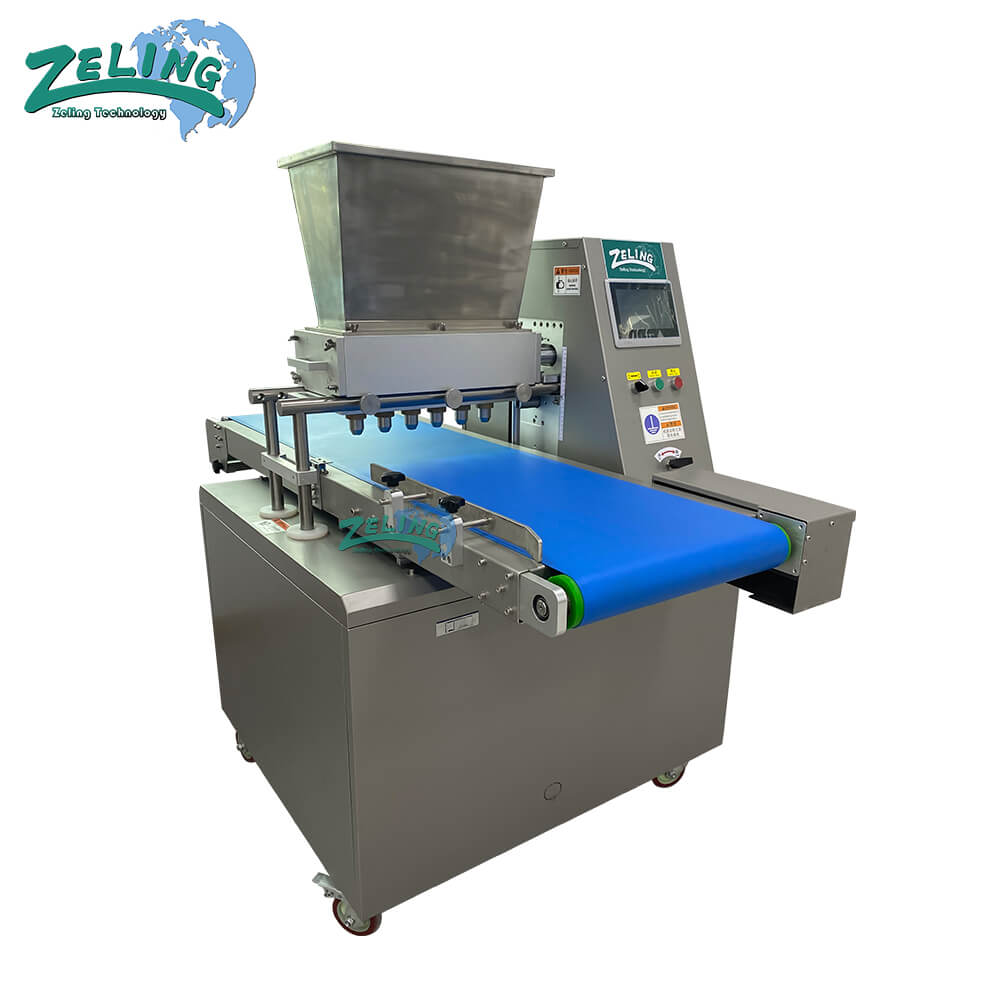

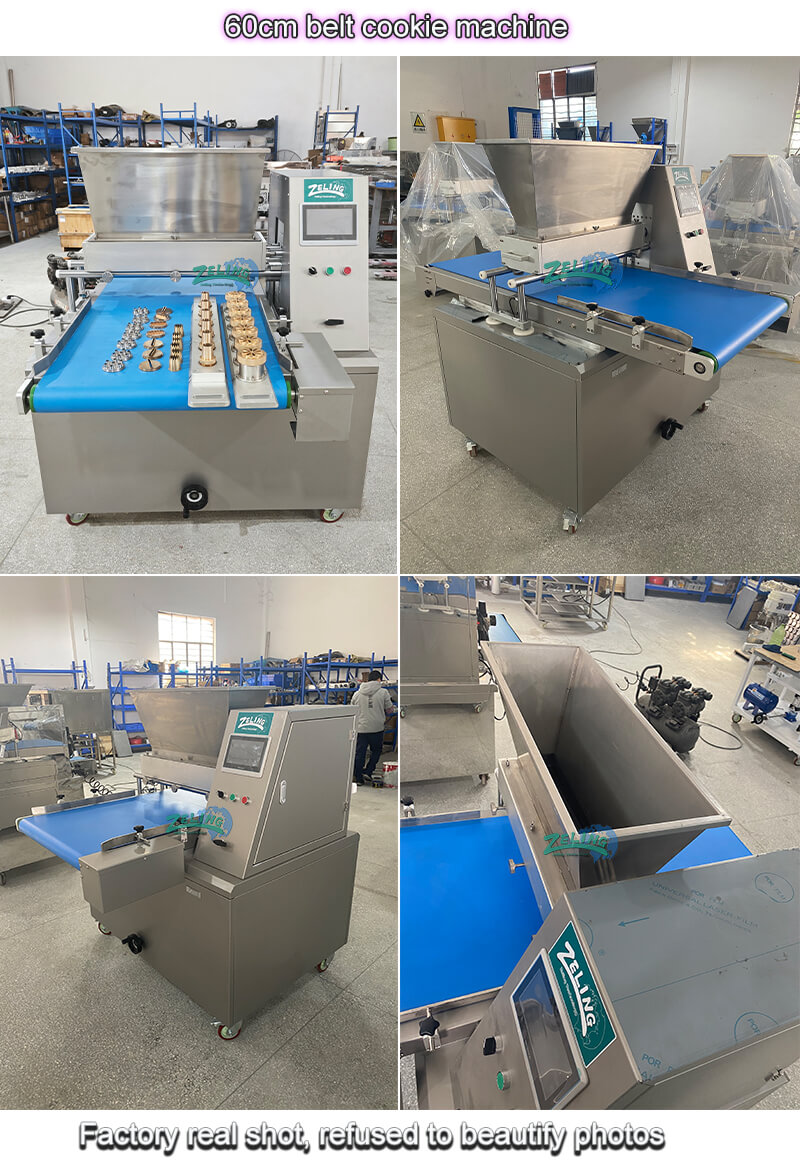

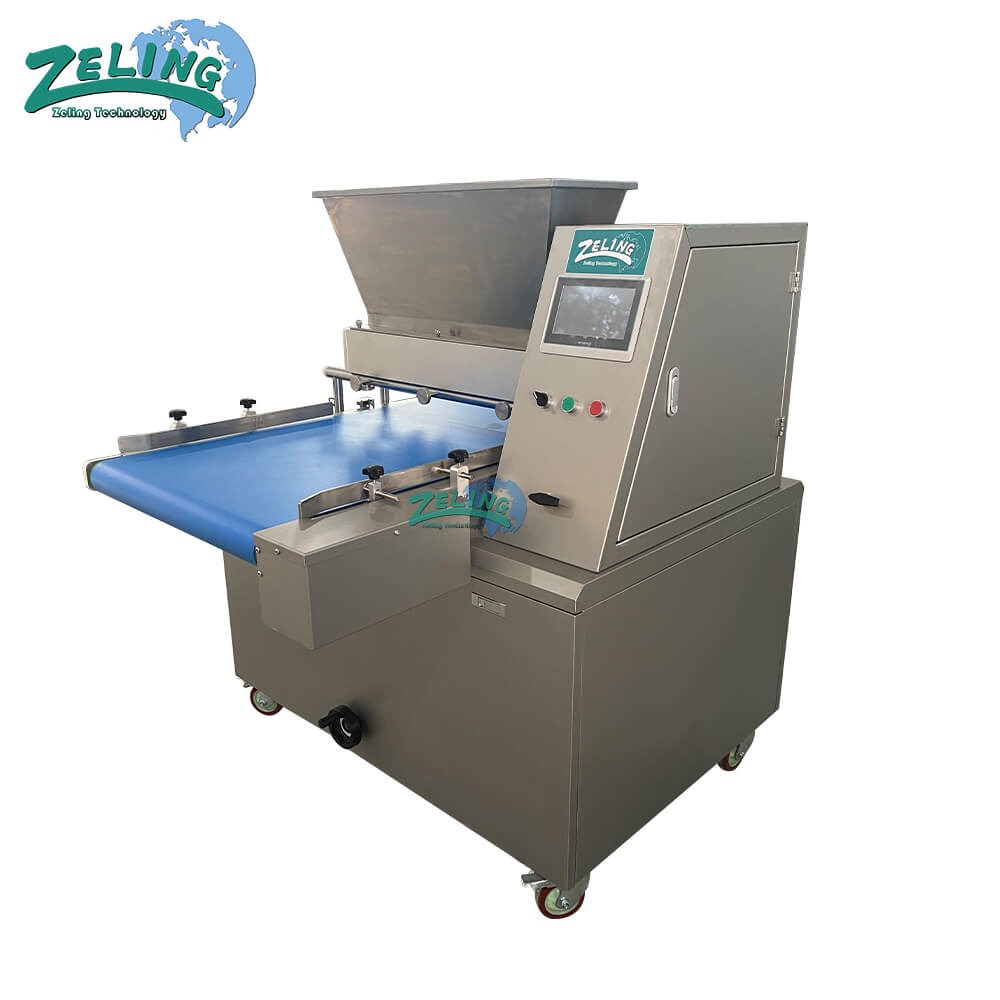

Automatic Cookie depositor Machine

Introduction

This cookie making machine is a forming machine that can produce various fancy snacks and cookies through extruding and forming of dough. Thanks to such features as advanced technology, compact structure, multiple functions and simple operation, it is deeply favored by users. It is one of the new food machineries in the market ideal for investors.

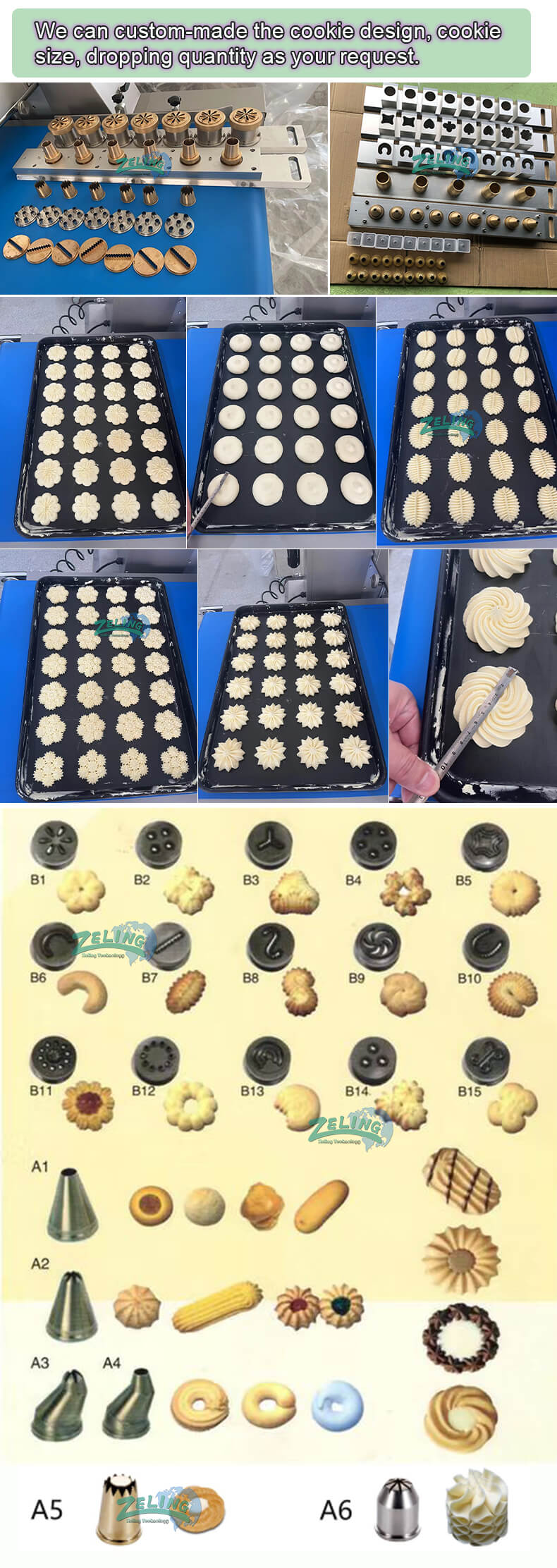

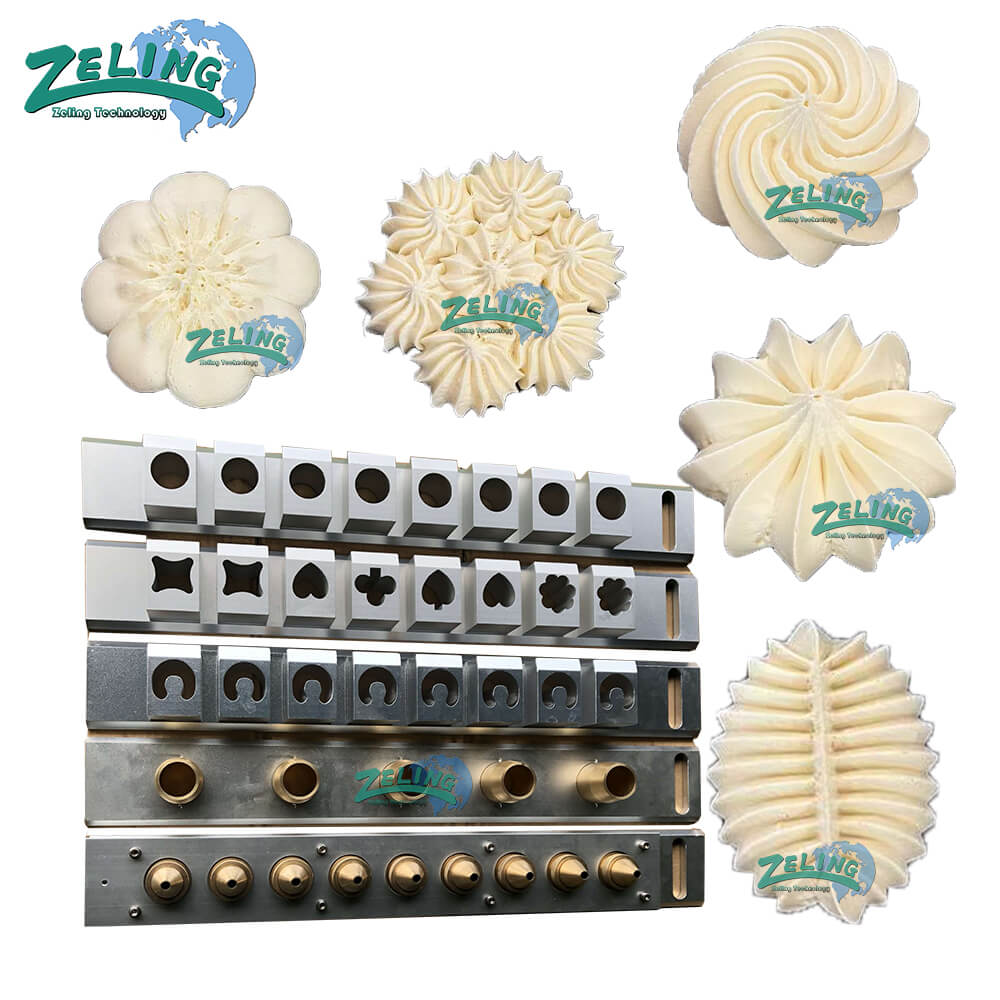

The machine can make dozens kinds of fancy cookies, doll cakes, sesame cakes, melon seed cakes, etc by using different molds. Users can adjust and select mold according to the need. The formed fancy snacks are unique in shape, clear in pattern and beautiful in appearance. The formed cookies can use hot air rotary oven ot tunnel oven to bake.

Inquiry Now

    ModelZL-CD400ZL-CD460ZL-CD600

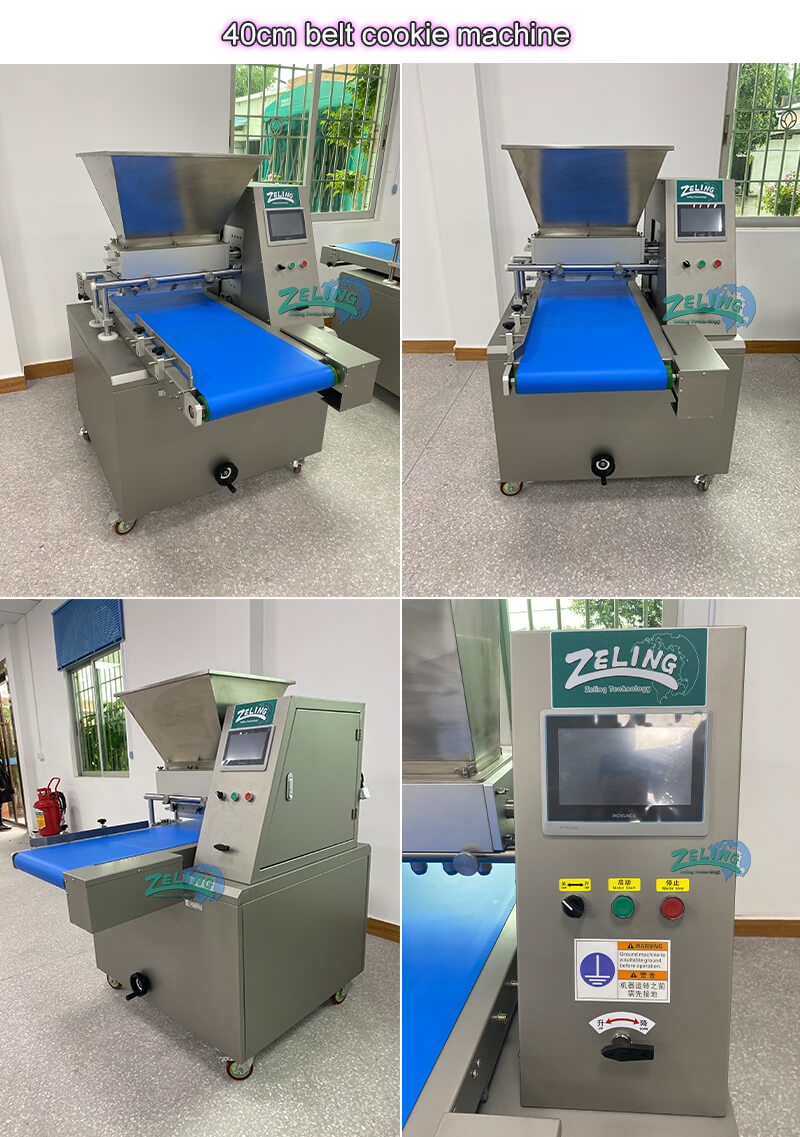

    Tray Width400 Type 460 Type  600 Type
    Capacity100-150kg/hr130-190kg/hr180-250kg/hr
    Programs/Recipe Memory20-40 programs20-40 programs20-40 programs
    Hopper Capacity 20L30L40L
    Voltage220V/60Hz/1ph/10A220V/60Hz/1ph/10A220V/60Hz/1ph/10A
    Power1.5KW1.8KW2.0KW
    Dimensions1600*950*1350mm1600*1000*1350mm1600*1150*1350mm
    Machine Weight350kg380kg420kg
    Conveyor Width420mm480mm620mm
    Tray size 400*600mm460*660mm / 460*720mm600*400mm / 600*800mm
    WirecutSupportSupportSupport

    Machine Feature :

    1. Adjustable speed and time of depositing rollers

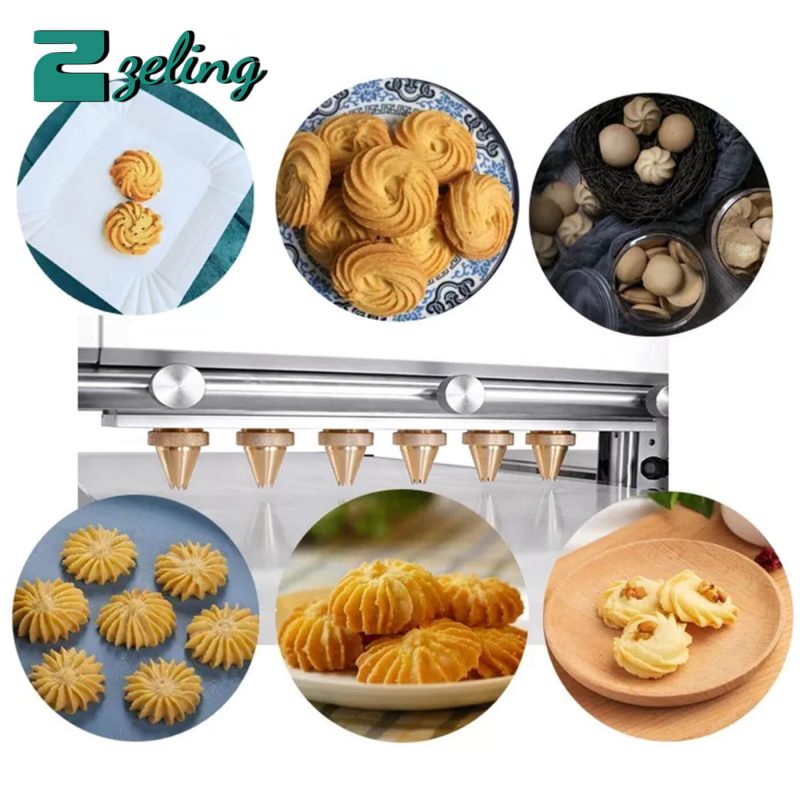

    2.  Adjustable speed of rotation of nozzles
    3. Anti slip conveyor belt in order to ensure the precise position of cookies on the tray.
    4. Adjustments for number of biscuits to be deposited per tray.
    5. Servo drive controls for high speed and accuracy
    6.  Imported Gear Box & Servo Motor used.

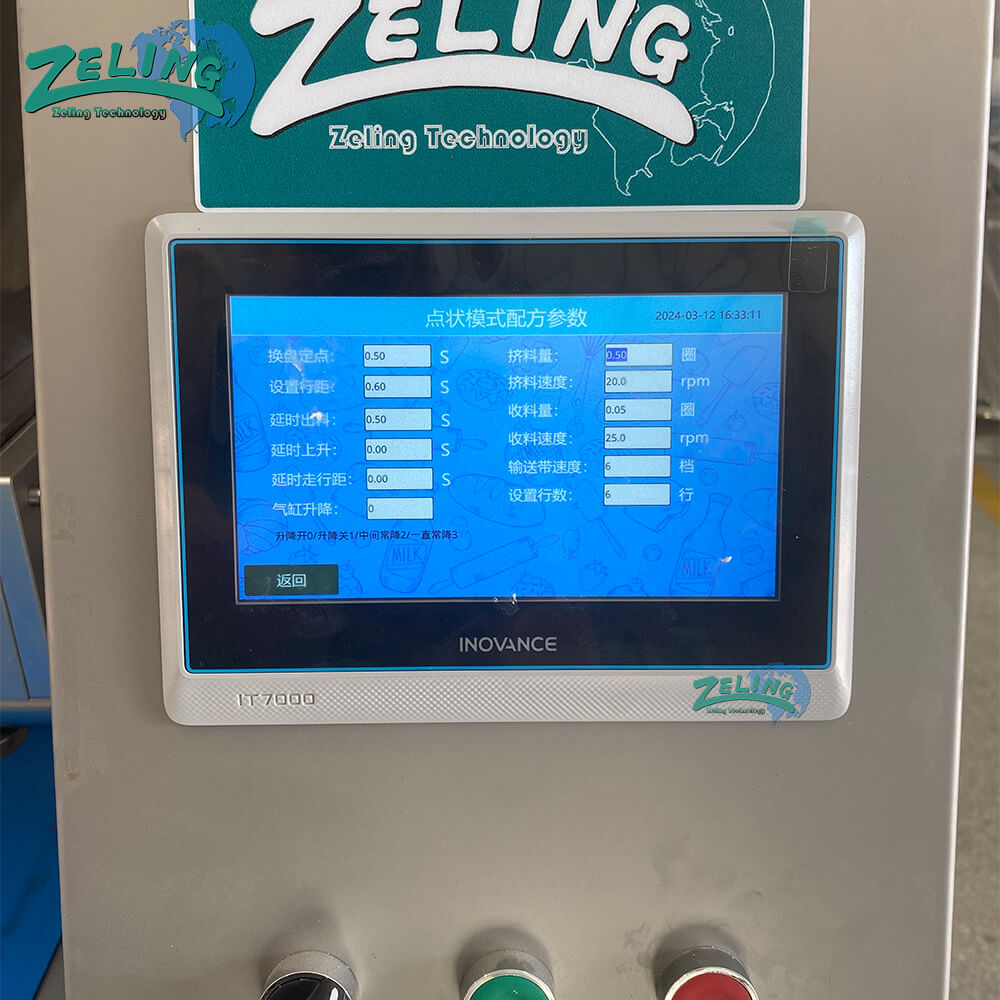

    7. PLC system to control production, easy to operate.

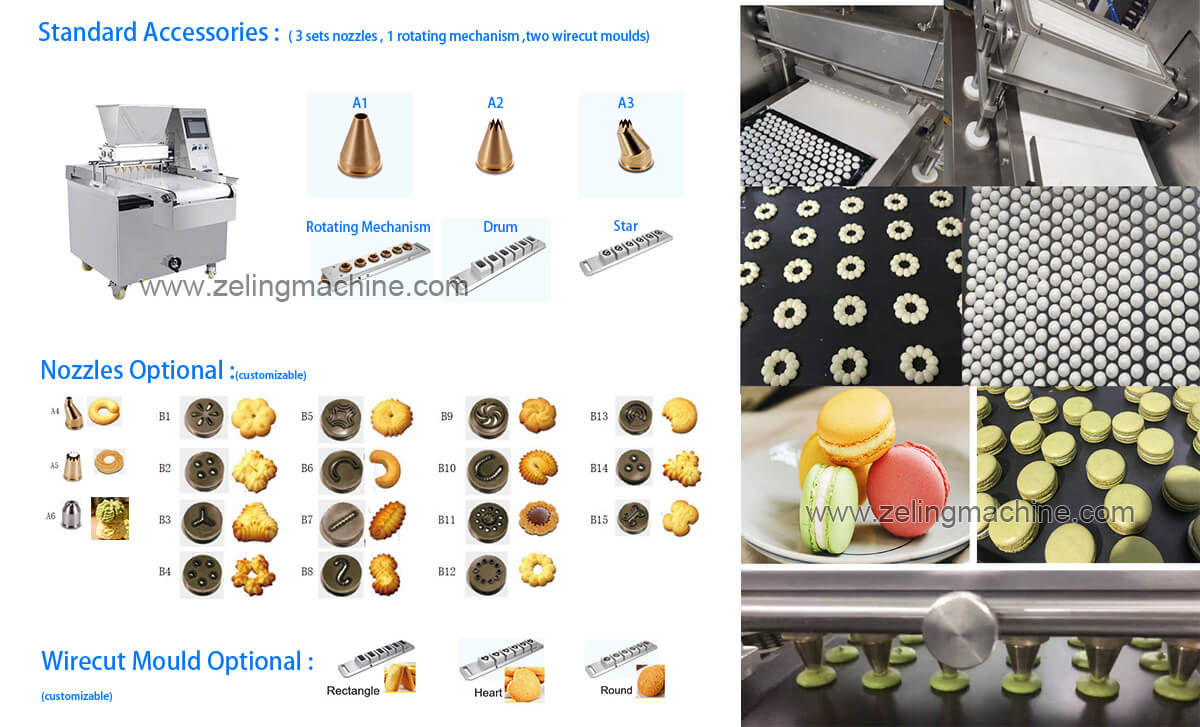

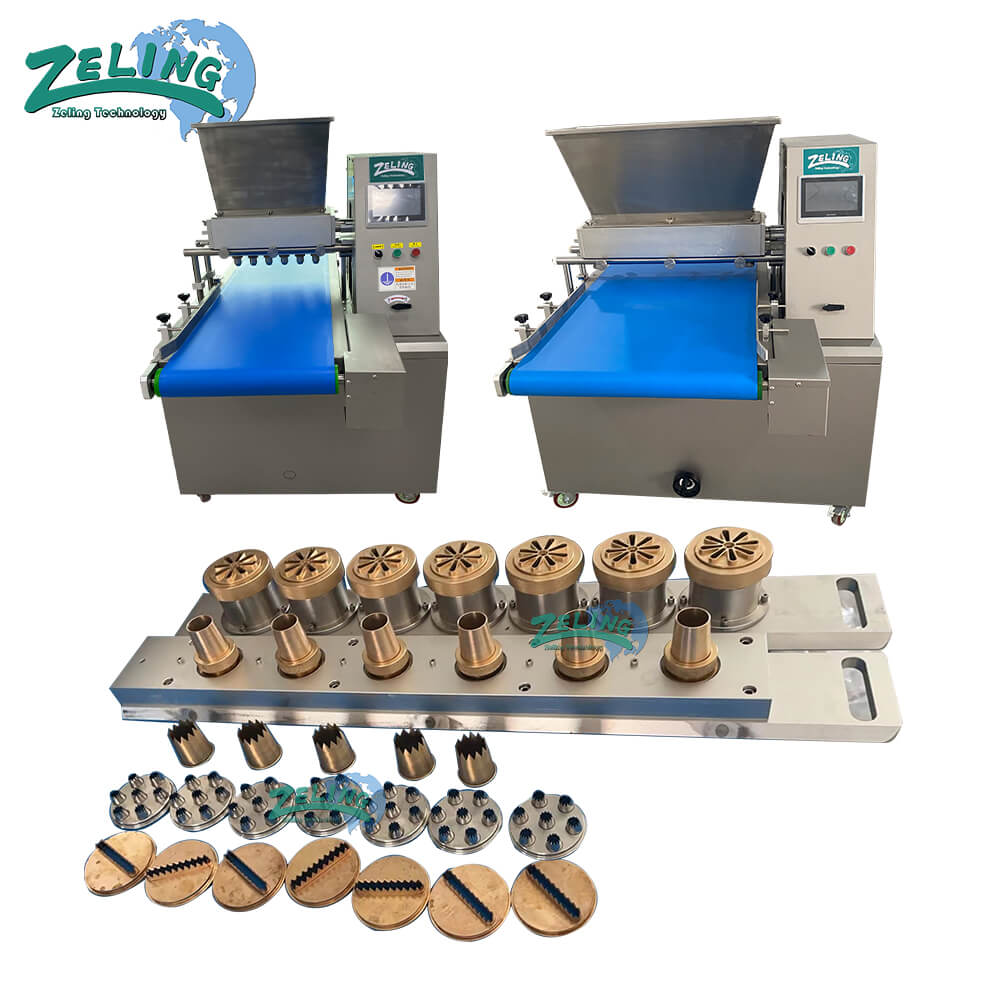

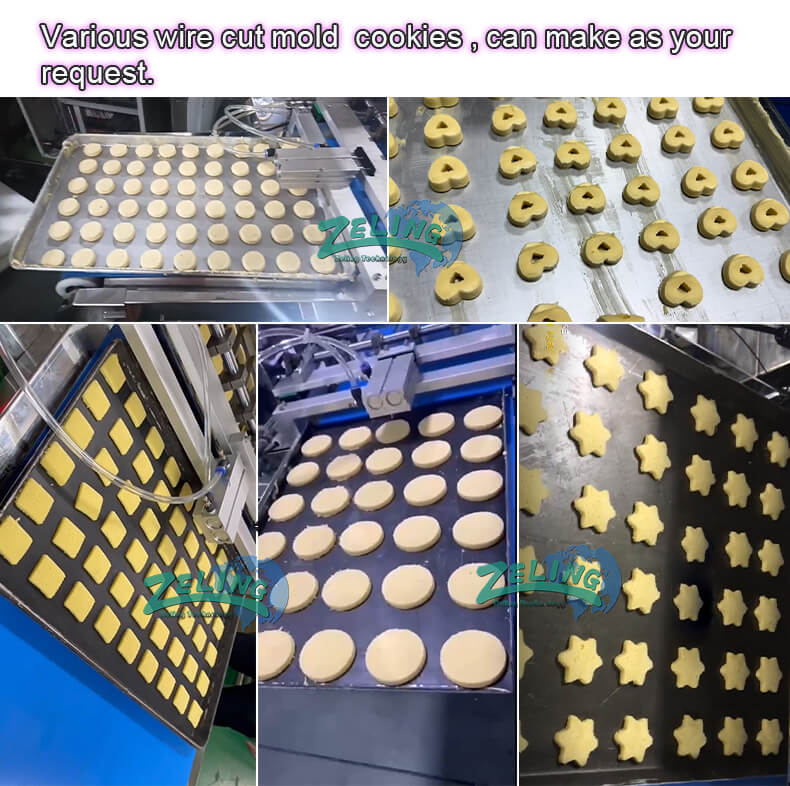

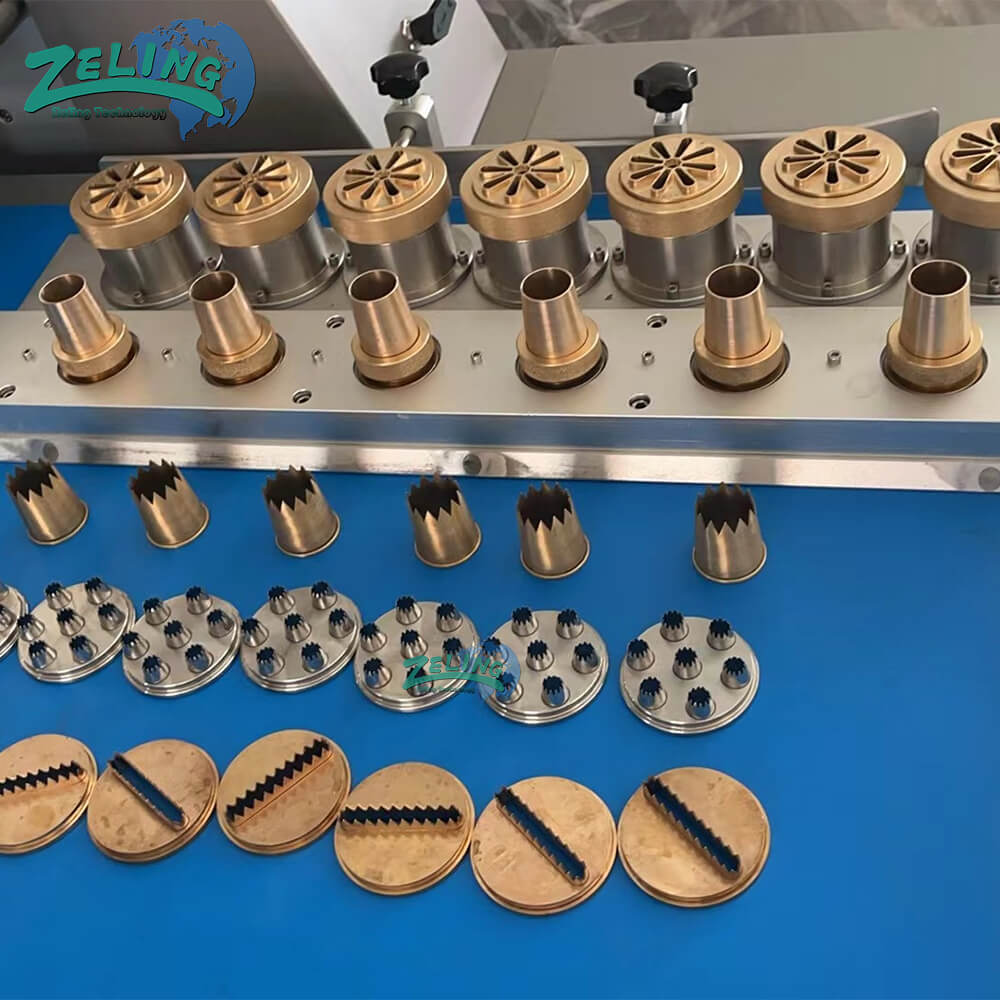

    8. It is capable to make both wire-cut and depositor cookies, only need to change mould and dismantle mechanical cutting arm.
    9. Depositor mould is driven by a servo motor separately. Synchro-belt for conveying. Makes cookie forming precisely.
